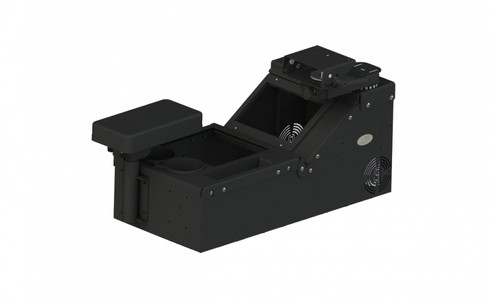

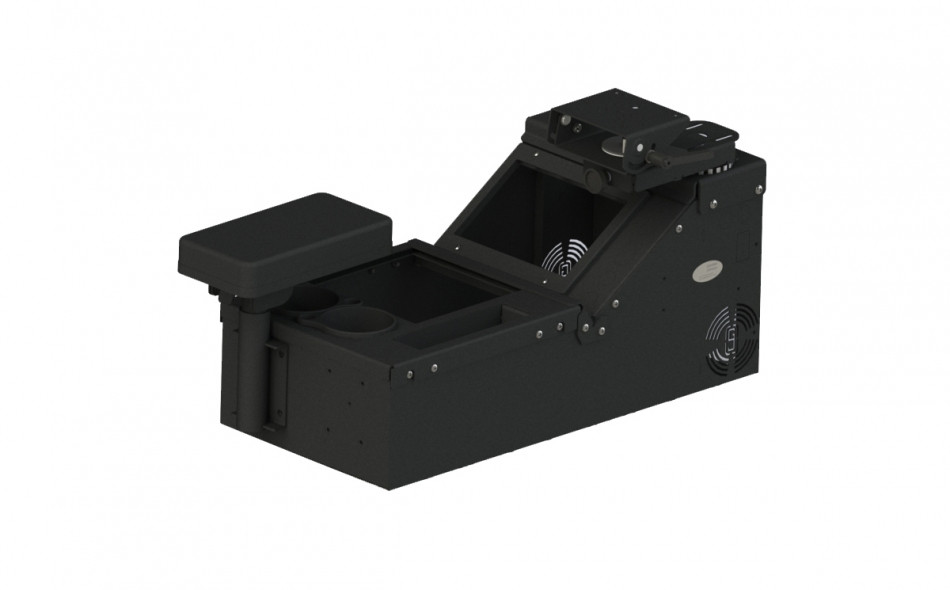

• Wide body console box (item no. 7160-0894)
• Internal cup holder (item no. 7160-0846)
• 6-inch locking slide arm (item no. 7160-0500)

• Low profile, universal console with sloped front mounting area
• Designed to work with top plate/tunnel plate and leg kits
• Two 12 volt plug knockouts, located on passenger side wall of console box and one knockout for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension
• PEM’s for mounting mic clip (item no. 7120-0723) on both sides
• Side vented openings for air flow or mounting a speaker inside the console box.
• PEM’s on back of console box for mounting external cup holder (item no. 7160-0847) and armrest (7160-0429) or printer armrest (item no. 7160-0430)
• Front plate of console underneath the dash area has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes
• Computer can be center mounted either off‐set towards the passenger on the “smiley face pattern” or on the 3‐bolt pattern closer to the driver for easy articulation access
• Fully welded construction for long term product life span
• 3 faceplates and 3 filler panels are included
• Box ships fully assembled (except for accessories)

Horizontal, low profile section:

• Has a consistent mounting space height of 11.5". The included cup holder uses 4.5" (11.43 cm) of that space
• Designed to house full-sized devices and accessories
• Has additional side mounting area of 2-inch that will accommodate the pocket (item no. 7160-0924), 2-inch faceplate for switches or power ports or a smaller device

Vertical, angled sections:

• Accommodates 5" of mounting space for one to two full-sized devices or faceplates
• Two 12-volt plug knockouts, located on top passenger side and two knockouts for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension
