Product Details:

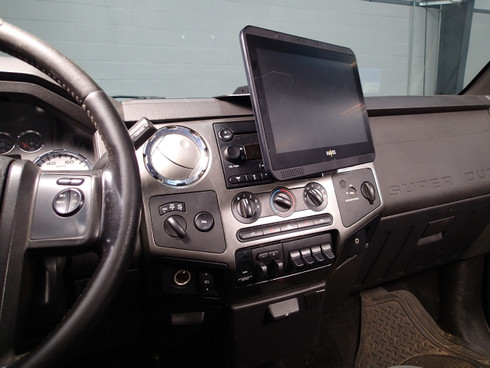

• Havis dash mount bracket kit for 2008-2016 Ford F-250 thru F-750
• Designed primarily to be used with Havis touch screen display (TSD-101)
• Three vertical mounting positions in as-shipped configuration and rotation plate can be removed and rotated 180 degrees for three additional vertical mounting positions that are approximately 11/16" lower
• Unique friction based hinge allows for easy lift for access to OEM control panel
• Hinge provides tilt swivel motion for left, right, up and down positioning
• Bracket allows monitor to be rotated 90 degrees in either direction for landscape or portrait applications
• Positions computer monitor close to dash in a safe, convenient line of sight
• Designed with occupants in mind, monitor swivels for improved viewing angle for driver and passenger.
• Excellent space saving solution allows additional equipment to be mounted in console.
• Easy installation with minimal parts needed for attaching to dash
• No permanent modification necessary if user desires to run wire harness externally
• Drilling required if user desires to conceal wire harness inside dash
• In addition to Havis TSD-101, C-DMM-2000 Series mounts can be used for other light weight devices.
• Recommended maximum weight carrying capacity = 4 lbs.
• Please view related products tab for additional innovative Havis solutions
• Product weight: 2.0 lbs.
• Testing: Vibration Testing: MIL-STD 810G 514.5, crash test: SAE J1455 30mph Crash Testing
