Product Details:

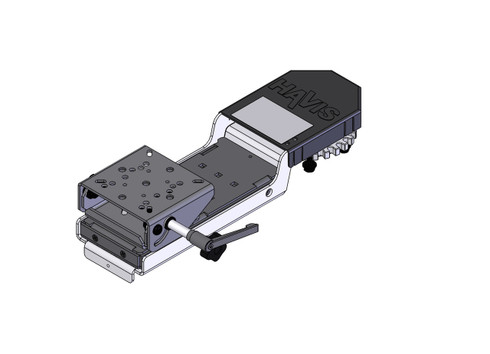

• Long swing arm with motion device and tilt/swivel mount
• Recommended for the fire market or any application where a longer overall length and slide function would be desired
• Drop down design allows for easier operation when mounted to the typical high fire truck or large commercial vehicle dash
• Front access control lever allowing for easy operation of entire arm rotation, and offering ergonomically supreme function
• Ideal for computer usage from both the driver and front passenger seats
• Horizontal rotation provides customized viewing angle
• Swing arm has locking points every 15 degrees of rotation to maximize placement options
• Slide out extension of up to 5.00"
• Includes tilt/swivel motion adapter that can provide up to 180 degrees of rotation and 90 degrees of tilt for laptops, tablets, see C-MD-202 page for additional information
• Locking handles provided for both slide and tilt functions. slide locking handle can be installed on either left or right side
• Rotation and slide tension easily adjusted with hand tools, no disassembly required
• Ruggedized design protects occupants and equipment
• Works with C-HDM-133, C-HDM-134 and C-HDM-135 heavy duty base mount allowing adjustable downward tilt for dash mounting (sold separately)
• Works with C-HDM-200 Series pole (sold separately)
• Mounting pattern: 4 holes @ 2.125" square (1/4" mounting hardware provided)
• Dimensions: 14.9" length, 19.9" max length, 4.5" wide, 3.5" high
• Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
