Product Details:

• Folding monitor and keyboard mount designed specifically to mount Havis docking stations and keyboard mounts to D&R 3 bolt mounting platforms

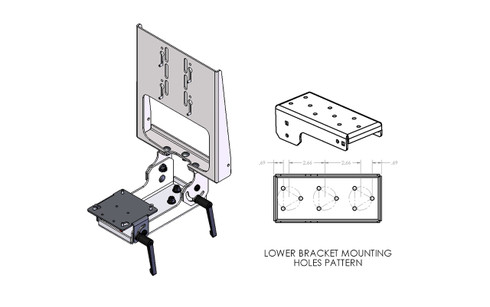

• Three D&R 3 hole mounting patterns allow for fore and aft adjustment at installation
• Fits displays with VESA 75 mounting hole pattern, .500" vertical incremental adjustments at 4 locations
• Keyhole slots allow for easy installation and removal of monitor and keyboard. flanged mounting hardware provided.
• Monitor bracket can be flipped down for access to dash controls
• Large cut-out makes for easy access to cables
• Keyboard platform adjusts from horizontal to 90 degrees down
• Fits keyboards and keyboard mounts with VESA 75 or amps (1.188" x 1.500") mounting hole patterns
• Monitor height and multiple mounting hole patterns work well for tablet docking station applications
• Works with most C-MM-200 Series monitor adapter, C-MM-300 Series adapter bracket and C-KBM-100 Series keyboard mounts for easy installation (sold separately)
• Not recommended for C-SM swing arm console applications
