Product Details:

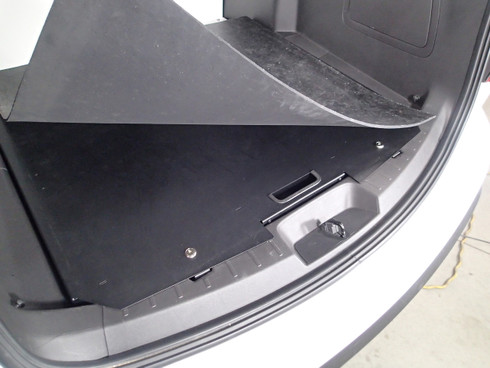

• Premium fold up cargo plate fits 2013-2019 Ford Interceptor Utility
• Plate assembly with fold up equipment platform for mounting electronic components
• Replaces OEM rear cargo floor / spare tire cover and attaches without drilling holes
• Equipment to be mounted on the underside of plate for protection (6" high space from top of spare tire to bottom of plate)
• Installer must drill and bolt on equipment as desired
• Door is hinged down in the closed position
• Works with Havis, inc. K9 inserts
• Works with some other mfg. rear partitions by removing or modifying forward filler panel. partition brackets may also need to be modified.
• As of 8/1/15 two lower brackets were added to provide additional support for heavy items mounted on top of tray.
• Optional retrofit support bracket kit available for trays purchased prior to 8/1/15 (part number CM007390)
• Includes two (2) gas springs for assistance in opening or closing door
• Does not work with retail Ford Explorer
• Optional floor mat available - 45.375" wide x 45.625" long x .188" thick -heavy duty masticated rubber (p/n: KNM01029-SUV) floor mat will require cutting to desired size.
• Ships motor freight
• See optional C-TTP-1-FAN-1 for improved ventilation
• 80 lb. maximum weight rating for equipment that is bolted to the underside of platform. (weight evenly distributed)
• Capable of holding platform in the open position with 180 lbs. of evenly distributed equipment weight (combined top and underside of platform)
• 400 lb. weight carrying capacity for cargo stored on top of the platform when closed. (will not hold 400 lbs. in open position)
• Mounting surface for equipment is 37.25" wide x 31" deep (front to back) x 6" high (to top of spare tire)
• Top of main platform measures - 40.5" wide x 38" deep (front to back)
• Forward trim panel measures - 40.5" wide x 12" deep (front to back)
• Forward trim panel goes up to OEM rear seats or K9 kit Model K9-F18 (trim panel not used with K9-F18-PT)
• Works with C-TTP-INUT-2 (sold separately)
• 14-gauge formed steel with a black medium texture powder coat finish
