Product Details:

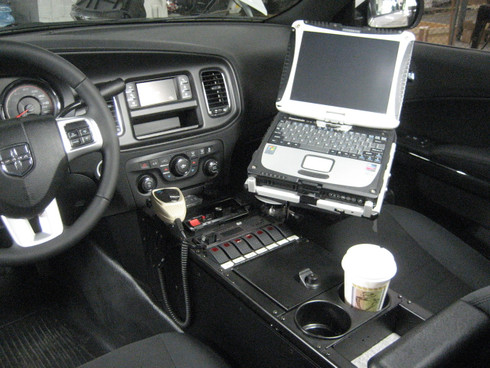

• 25" console for 2011-2019 Dodge Charger (police package)
• 9.5" max depth at rear and 7.375" min at front of the console. intended for applications when more depth is needed such as self contained/one piece radio's or long control heads (see side view measurement diagram)
• See "Side View Depth Measurements" under the resources tab (above) for mounting depth allowance of control heads and/or options
• Custom fit console uses OEM floor mounts no permanent vehicle modification required
• Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
• 1.5" high plate C-EB15-DAP-1P available for OEM aux input module in Charger street appearance applications. (must specify)
• Includes 3 cutouts for two OEM 12 volt plug outlets and one MP3/USB port in front trim panel cover
• The cutouts will accept both the OEM lighter plugs or the Havis lighter plug kit (C-HK-181) included
• Vehicle mounting kit included
• If your vehicle has the optional carpet interior, there will be a small hole in the carpet not covered by the console housing at the rear. if desired, an optional cover plate p/n: CM001642 is available.
• If using a vertical gun rack between seats, a partition with gun alcove is recommended
• C-TCB-7 or C-HDM-204 can be mounted to the side of the console housing, but lower mounting holes must be drilled by the installer
• C-VS-0809-CHGR-1 console is recommend for laptop applications
• C-VS-2400-CHGR-2 console is recommended for low profile applications
• C-SM-MMP, C-SM-SA, C-SM-SA-1 and C-SM-SA-1-HD will bolt to the upper nut track or installer can drill mount holes as desired
• Overall measurements = 9" high x 9" wide x 28.25" long (including forward trim panel)
• C-VS-0809-CHGR-1 console is recommended for laptop applications
• Accepts C-SM-MMP, C-SM-SA, C-SM-SA-1 and C-SM-SA-1-HD
