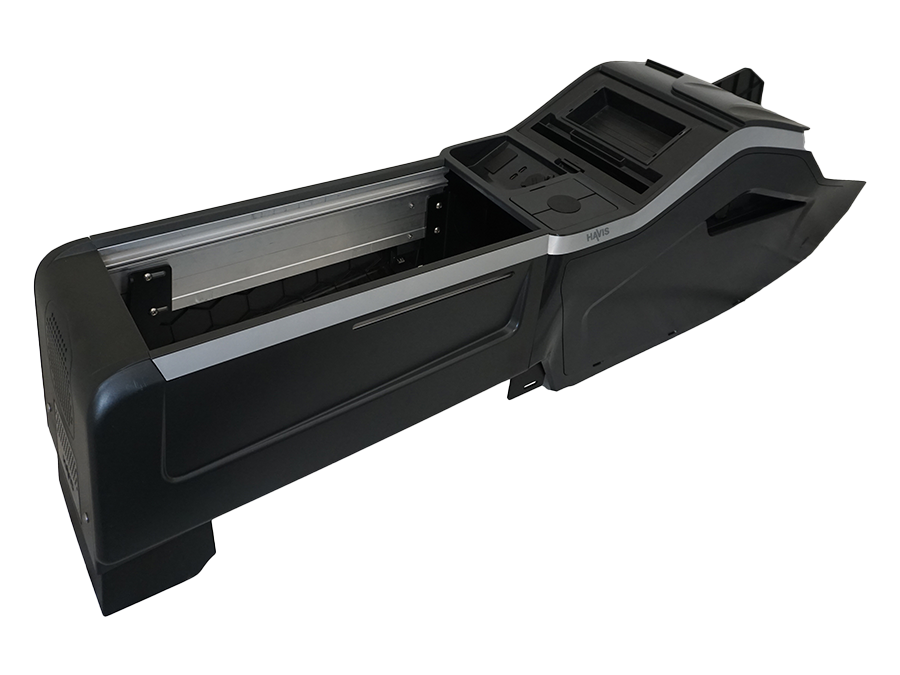

C-VSX-1800-BLZR-PM-EV- H - VSX Console with Front Printer Mount or Integrated Storage Bin for 2024-2025 Chevrolet Blazer EV PPV*
$1,090.00
Product Description
Features
- Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
- Heavy-duty steel floor-mounting structure provides rigid framework for console
- Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
- 16% lower weight than comparable steel consoles
- Low profile for safety and side-to-side egress
- Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
- Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
- If printer is not being used, leave pre-installed liner in place
- Removable tray in front storage bin can be replaced with optional C-EBX kits for siren light control head options (sold separately): See VSX console accessories
- Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-218, sold separately), relocated required OEM USB media hub, port for 12V lighter plug, and optional cutout for Havis C-USB-3 dual port
- 18" of total equipment mounting space in 9"W section
- Storage pockets with provisions for dual USB & 12V outlet, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
- Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-604 hub, Motorola speaker, and integrated cable management system
- Use with CUP2-1004 self-adjusting double cup holder (fixed mount and C-ARM-1001 arm rest, sold separately)
- Filler plates and equipment brackets for 9"W section included to enclose mounting areas
- Made in the USA with a lifetime warranty
- Vehicle trim levels with OEM console installed require additional purchase of Chevrolet duct, PN 26401329
- 2025 Blazer EV PPV model and later, OEM USB and OEM USB wiring F harness must be purchased separately
- GM USB part number: 527865004. GM wiring F harness part number: 86592838
- OEM USB block off plate included
Specifications
PRODUCT SPECIFICATIONS:
| Fits: | 2024-2025 Chevrolet Blazer EV, fits all SS retail trim levels and PPV version |
|---|---|
| Dimensions: | 53.16” L x 13.34” W x 16.25” H |
| Noncompatible: | C-EBX-MOT-1 |
| Optional bracket: | C-PMX-A-SP printer slot cover for non-printer use |
| Compatible printers: | Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits |
| Mounting: | Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting |
| Optional Cables: | DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately) |
| GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately) | |
| Gross weight: | 60 lbs |
