Product Details:

• Improved product replacement available, please click blue "view new product" button above

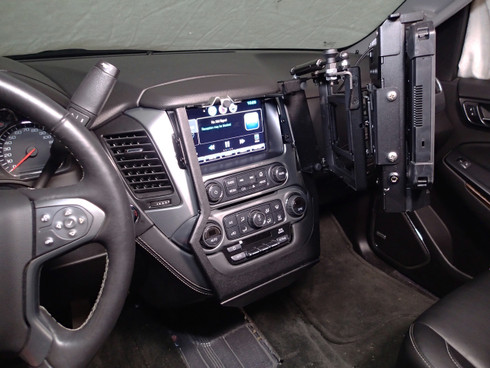

• Swing out dash monitor mount base for 2015-2019 Chevrolet Tahoe PPV and SSV
• Configurable for many universal computer monitors
• Works with C-MM-200 Series monitor adapter and C-MM-300 Series adapter bracket for easy installation (sold separately)
• Excellent space saving solution allows additional equipment to be mounted in console.
• Designed with driver in mind - monitor conveniently swivels side to side for optimal viewing angles for both driver and passenger
• Spring latch easily secures monitor when pushed into closed position
• Works with C-VS-1500-TAH-1
• Works with C-VS-1013-TAH-1 and C-VS-0812-TAH-1 consoles if installer drills two holes in console top for DMM main frame mounting. lower DMM bracket not used.
• Does not work with C-VS-2000-TAH-2 or C-VS-1300-TAH-2-PM consoles
• Tahoe PPV with order code - A95 includes OEM center console. This console must be removed and the instrument panel lower center trim must be purchased from Chevrolet in order for Havis console to fit properly.
• Chevrolet part number for instrument panel lower center trim #22885554 (color is black)
• Includes VESA 75 hole pattern on side to side swivel
• Some equipment with VESA 75 hole pattern may still need the C-MM-201 and C-MM-301 for improved positioning away from the shifter lever
• The swing door utilizes a gas spring to assist in opening the door and to eliminate the possibility of it slamming shut.
• If additional damping is desired because of heavier equipment, an optional stronger gas spring is available under part number CM86662-30 (sold separately) installer must change out gas spring as needed.
• 10 lb. weight carrying rating
