Product Details:

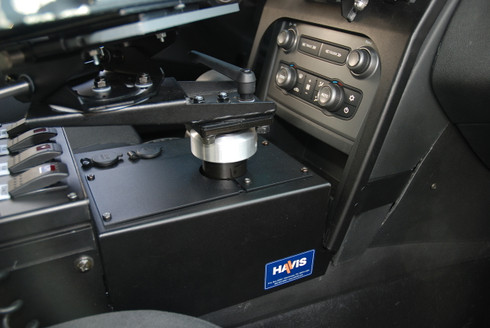

• 14" lo-profile console for the 2011-2013 Chevrolet Caprice. console currently fits 9C1 patrol Model only
• This new console replaces the removed OEM section of the vehicle and runs the full length of transmission tunnel
• Total mounting area consists of 14" of control head mounting area and 3" in depth
• Offers 3" maximum mounting depth at rear and 3" minimum at the front of console (see Side View Depth Measurements under "resources")
• 6" high housing is available and can be ordered separately for deep control head applications. please contact your sales team for more information.
• If a 6" deep console is desired, you must order a C-TMW-CAPR-02 tunnel mount and a standard depth C-1400 console. This will allow the console to bolt directly to the tunnel mount or raise it with the C-M-5 bracket kit if needed (ordered separately)
• C-VS-1400LP-CAPR-2 rear tunnel plate is 2.5" shorter than the C-VS-1400LP-CAPR-1 for additional gun mounting space
• Accepts C-AB-CAPR-1 external mounted accessory box (sold separately)
• Provides a mount location next to the shift lever for optional 3.5" or 5.5" C-HDM-200 Series telescoping poles (sold separately)
• If using the optional C-AB-CAPR-1, a 5.5 inch high pole must be used. C-HDM-208 recommended
• Includes hump mount brackets and side trim cover panels
• Includes vehicle specific tunnel mount (C-TMW-CAPR-02)
• Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
• No additional vehicle mounting kit required
• If using a vertical gun rack between seats, a partition with gun alcove is recommended
• Overall measurements = 9" high x 9" wide x 28.25" long (including forward trim panel)
