DISCONTINUED 7-1-21 USE C-MD-315

Product Details:

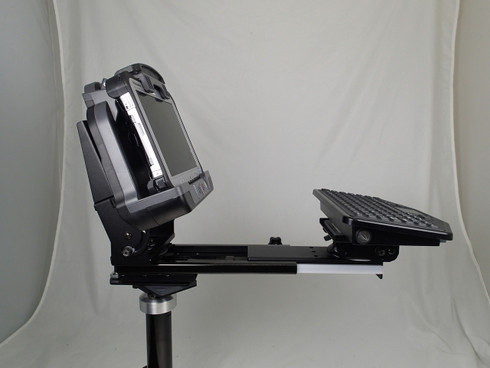

• Pre-assembled package includes: C-HDM-305 (motion device), C-HDM-402 (heavy duty safety lock assembly), C-MD-204 (low profile tilt swivel motion device) and C-UMM-101 (universal monitor mount)
• C-KBM-1XX keyboard adaptor and C-MM-2XX / C-MM-3XX monitor adaptors must be ordered separately
• The C-MM-201 and C-MM-301 adaptors may still be required for some VESA 75 equipment depending on cable or mount hole locations
• See the "monitor mount configurator" under the "build my solution" tab above for more information on how to order a complete system
• Mounts directly to C-HDM-200 Series poles
• Monitor mount includes VESA 75 hole pattern for many monitors or devices
• Tilt swivel includes VESA 75 and amps hole patterns
• Space saving solution allows additional equipment to be mounted in console
• Monitor has 90° side to side swivel for improved viewing angle
• Tilt swivel has 45° tilt and 90° swivel for improved ergonomics
• Main swing arm with 180° horizontal rotation provides ergonomic positioning
• Quick-release handles for monitor and keyboard tilt control
• Rotation securely locks into stowed position.
• Slide out extension for keyboard of up to 6" (15.25 cm)
• 10.875" high ( to the top of the C-UMM-101 )
