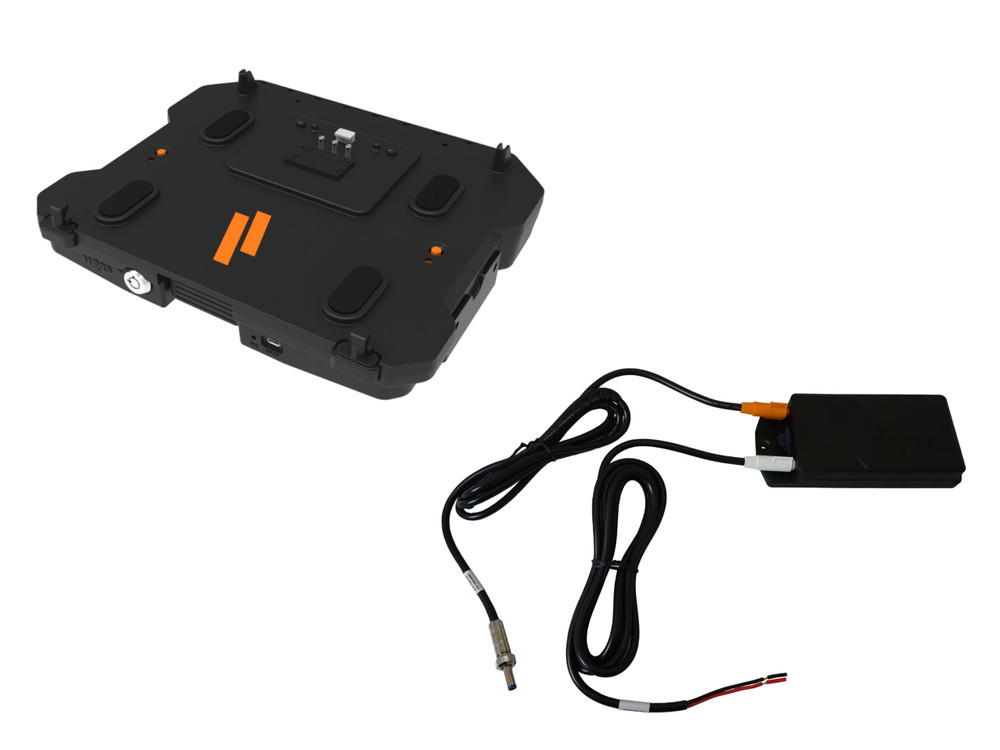

DS-DELL-432-3 - Docking Station for Dell Pro Rugged 14″ and 13″, 5430, 7330, 5420, 5424, & 7424 Notebooks with Advanced Port Replication & Triple Pass-Thru Antenna Connections & Havis Power Supply*

$1,560.00

Product Description

Supports Dell's Dell Pro Rugged 14" and 13", 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
Front facing USB-C (3.2) port
LED power indicator
Updated One-handed docking & undocking with pull latch
Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
Compact and lightweight with a reduced footprint
U-style mounting bracket with seating notch for easy installation
Includes 120W Havis Power Supply (120N-A01-T01-1)
Provides access to all notebook buttons and ports when docked
Compatible with screen support (DS-DA-412, sold separately)
Integrated cable management system
Rounded edges and corners for comfort and safety
Keyed lock for added security
Made in USA

Compatible devices:	Dell Rugged Notebooks Pro Rugged 14", Pro Rugged 13", 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
Certifications:	Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 63° C (-4° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Connectivity includes:	(1) RJ45 Ethernet, (3) USB 3.2 Type A, (1) USB-C 3.2 (Front Facing), (1) Serial - 5V powered, (1) HDMI , (1) 19.5V Switchcraft
Antenna:	Triple pass-through connection (TNC)
Dimensions:	Height 2.73” (69.3mm), Width 12.39” (314.7mm); Depth 10.59” (269mm)
Product Weight:	Dock: 3.30 lbs. (1.50 kg); Mounting Bracket: 1.42 lbs. (0.64 kg)
Gross weight:	5 lbs
