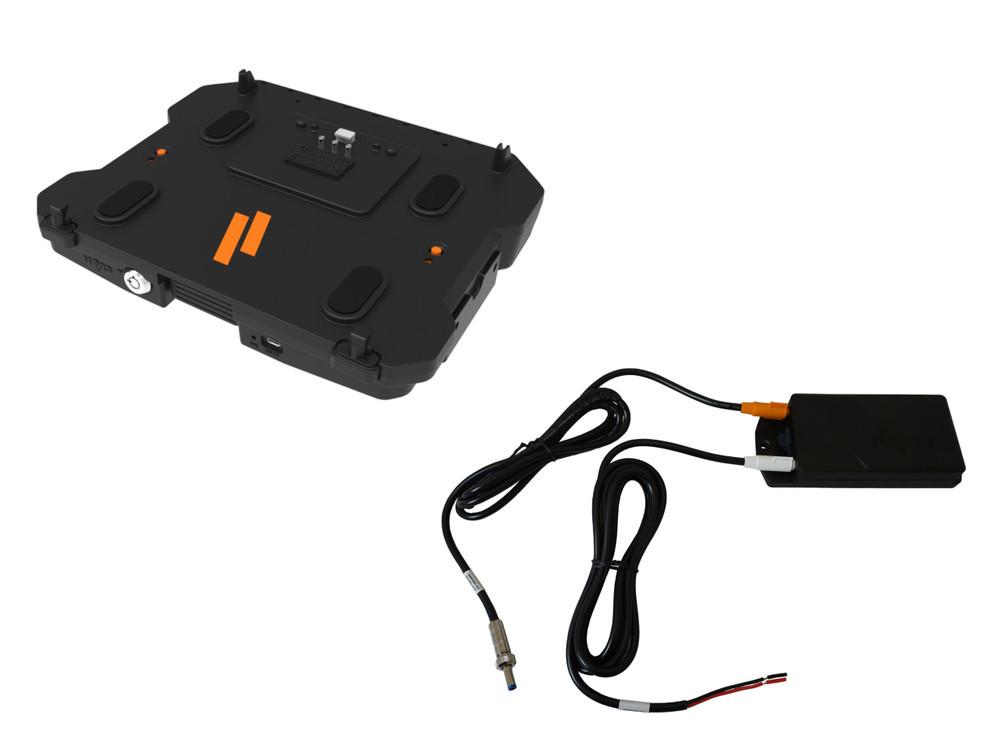

DS-DELL-436 - Docking Station for Dell Pro Rugged 14″ and 13″, 5430, 7330, 5420, 5424, & 7424 Notebooks With Standard Port Replication & Havis 120W DC Power Supply*
$1,125.00
Product Description
Features
- Supports Dell's Dell Pro Rugged 14" and 13", 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
- Includes standard port replication to connect multiple mission-critical peripherals
- Front facing USB-C (3.2) port
- LED power indicator
- Updated One-handed docking & undocking with pull latch
- Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
- Compact and lightweight with a reduced footprint
- U-style mounting bracket with seating notch for easy installation
- Includes 120W Havis Power Supply (120N-A01-T01-1)
- Provides access to all notebook buttons and ports when docked
- Compatible with screen support (DS-DA-412, sold separately)
- Integrated cable management system
- Rounded edges and corners for comfort and safety
- Keyed lock for added security
- Made in USA
Specifications
PRODUCT SPECIFICATIONS:
| Compatible devices: | Dell Rugged Notebooks Pro Rugged 14", Pro Rugged 13", 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204 |
|---|---|
| Certifications: | Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 63° C (-4° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F) |
| Connectivity includes: | (1) RJ45 Ethernet, (3) USB 3.2 Type A, (1) USB-C 3.2 (Front Facing), (1) Serial - 5V powered, (1) 19.5V Switchcraft |
| Dimensions: | Height 2.73” (69.3mm), Width 12.39” (314.7mm); Depth 10.59” (269mm) |
| Product Weight: | Dock: 3.30 lbs. (1.50 kg); Mounting Bracket: 1.42 lbs. (0.64 kg) |
| Gross weight: | 5 lbs |
