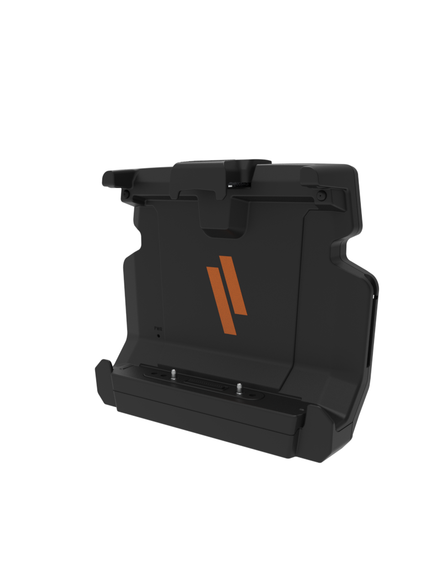

DS-GTC-1502 - Docking Station for Getac ZX80 with Advanced Port Replication*

Product Description

Supports Getac's ZX80 Tablets in Material Handling, Utility Services, Waste Management and other demanding environments
Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
LED power indicator
Integrated Stylus Holder on both the left and right side of the dock
Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
One-handed docking & undocking
Power supply cable included (DS-DA-339)
Compact & lightweight
Compatible with the Getac ZX80 extended batteries and handstrap with stylus holder
Integrated cable management system
Integrated VESA 75 mounting pattern
Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
Rounded edges and corners for comfort and safety
Made in USA

Compatible Devices:	Getac ZX80
Certifications:	Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 63° C (-20.2° F to 145.4° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F) Thermal Shock: MIL-STD 810H, Method 503.7 Package Humidity Testing: MIL-STD-810H-507.6, 30~60°C, 95%Relative Humidity, 10days Bump(Shock)Testing: (25g/6ms) for 1000 positive and 1000 negative pulses FCC, CE, CAN ICES (B), RoHS EMC Testing: EN 55032, EN 50498 ESD: IEC 10605
Port Replication:	Advanced: (2) USB 2.0 (1) RJ45 Ethernet (1) Powered Serial Port (5V)
Dimensions	8.08" (205mm) H x 9.12” (233 mm) W x 2.94” (75 mm) D
Product Weight:	1.73lbs (0.78kg)
Gross weight:	2.25 lbs
