DS-GTC-1506-3 - Cradle for Getac ZX80 and Triple Pass-Thru Antenna Connections & DC-DC Power Supply with USB-C Output

$618.00

Product Description

Supports Getac's ZX80 Tablets in Material Handling, Utility Services, Waste Management and other demanding environments

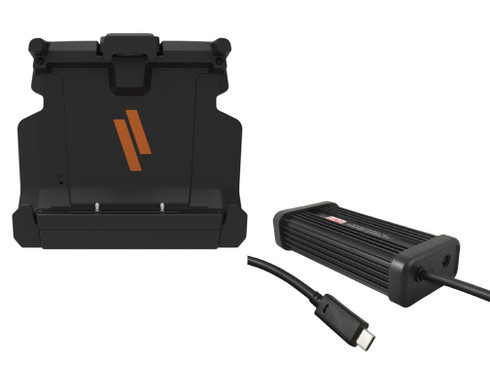

Cradle (no dock) with triple pass-through rf antenna connections, & LPS-175 (60W vehicle power supply) for Getac ZX80 tablet (USB-C)
Includes LPS-175 power supply
Optional triple pass-through antenna connection
Integrated Stylus Holder on both the left and right side of the dock
Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
One-handed docking & undocking
Compact & lightweight
Compatible with the Getac ZX80 extended batteries and handstrap with stylus holder
Integrated cable management system
Integrated VESA 75 mounting pattern
Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
Rounded edges and corners for comfort and safety
Made in USA

Compatible Devices:	Getac ZX80
Certifications:	Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 63° C (-20.2° F to 145.4° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F) Thermal Shock: MIL-STD 810H, Method 503.7 Package Humidity Testing: MIL-STD-810H-507.6, 30~60°C, 95%Relative Humidity, 10days Bump(Shock)Testing: (25g/6ms) for 1000 positive and 1000 negative pulses FCC, CE, CAN ICES (B), RoHS EMC Testing: EN 55032, EN 50498 ESD: IEC 10605
Antenna type:	(3) SMA
Dimensions	8.08" (205mm) H x 9.12” (233 mm) W x 2.94” (75 mm) D
Product Weight:	1.78lbs (0.81 kg)
Gross weight:	2 lbs
