K9 transport system, Insert, K9-PT, Ford Interceptor Utility Police Vehicle 13-16, See Specification,

Product Details:

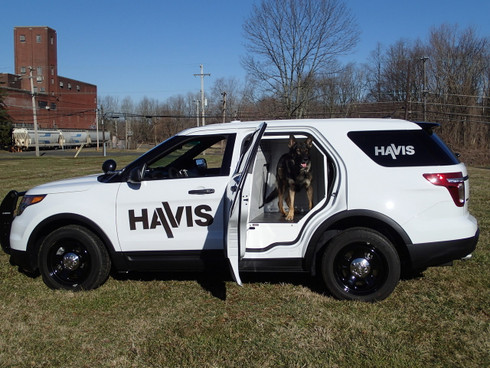

• K9 / prisoner transport insert for 2013-2017 Ford Police Interceptor Utility allows transportation of both a K9 and a prisoner
• K9 compartment is on the driver side (see top view diagram for measurement details)
• Single prisoner compartment is on the passenger side and utilizes the OEM single passenger seat and seat belt
• Maximizes usable space needed for seat travel, driver comfort, visibility, K9 compartment and cargo area size
• Prisoner compartment includes front bulkhead with upper clear polycarbonate guard and rear bulkhead
• Both compartments include aluminum fold-down interior window guards and door panels
• Emergency exit sliding door between K9/PT compartments (quick release knob on front bulkhead in driver compartment)
• Bolt together system is easy to install
• Fabricated from heavy-duty aluminum for long-lasting durability
• Radius corners, molded edges and proper sized ventilation holes
• Unique white powder coat finish on most parts. window guards and mount brackets are black powder coat finish
• Works with OEM rear cargo floor / spare tire cover or Havis C-TTP-INUT-1, C-TTP-INUT-2 and C-TTP-INUT-200
• Will not work with Havis C-SBX-101
• For K9 applications, it is recommended to order the Interceptor Utility with the OEM optional aux rear air conditioning. (Ford option code 17A)
• Does not work in Ford retail Explorer
• Window guards include bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting. fan can mount on driver or passenger side
• 10" fan and mount kit for window guard mounting (# wgi-fan option sold separately)
• K9 compartment rear wall includes mounting location for 10" emergency exhaust fan (KK-K9-HA-FKT-10 sold separately)
• 12" fan # KK-K9-HA-FKT-12 not recommended
• Rear cargo space behind K9 compartment to rear hatch = 22.25" wide x 35.5" long
• Rear cargo space behind prisoner compartment to rear hatch = 16.5" wide x 43.5" long
• Rear cargo area width = 40" wide
• See top view diagram for K9 compartment measurements
• K9 kit window guards include a .281" x 1.75" obround slotted hole pattern to minimize the possibility of fingers accidently being put into the K9 compartment.
