Product Details:

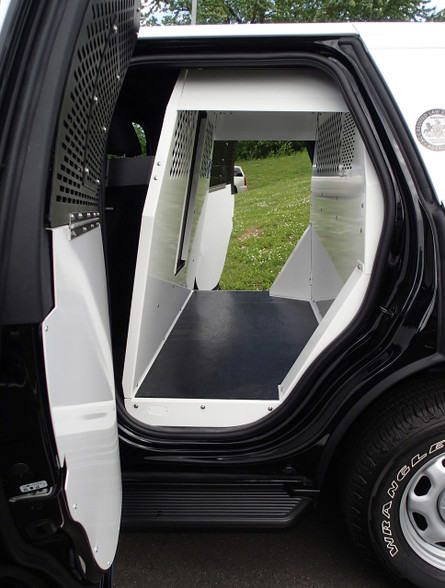

• K9 transport system
• For 2018-2019 Ford Expedition SSV and retail (standard length / 122.5 wheel base) kit housing with one front sliding door, aluminum door panels and fold-down interior window guards
• Fabricated from heavy-duty aluminum for long-lasting durability
• Super durable white powder coat finish on main components black medium texture semi gloss powder coat finish on center sliding door and window guards
• Window guards with .281" x 1.75" slotted hole pattern to minimize the possibility of fingers accidently being put into the K9 compartment
• Designed to maximize driver seat travel without compromising K9 entry
• Mounts to OEM mounting points. (no drilling required)
• Easy to install and clean
• includes:
• Interior LED dome light
• Durable and .250" thick masticated rubber mat
• Window guards with bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting
• Rear hinged non-locking floor cover for use with OEM rear cargo floor compartments
• Cover creates additional 48"wide x 12" high x 13" long enclosed storage compartment
• optional compatible solutions:
• Air circulation fan option (p/n K9-A-102)
• Water bowl (p/n: K9-A-103)
• K9 compartment floor to ground: 27"
• Inside dimensions: 63.5" wide x 43" high x 30" long at floor / angles up to 24" long at ceiling
• Side entry openings: 25.5" wide x 37" high
• Front wall sliding door opening: 14" wide x 30" high
• Cargo storage space between rear K9 wall and OEM rear floor trim: 48"
• Does not accept the K9-A-101 option
• Does not work in Expedition max (131.5" wheel base) OEM optional running boards is recommended to aid in K9 entry
• Hot-N-Pop system K9-A-201 only available for SSV Expedition and is not available for retail Expedition
