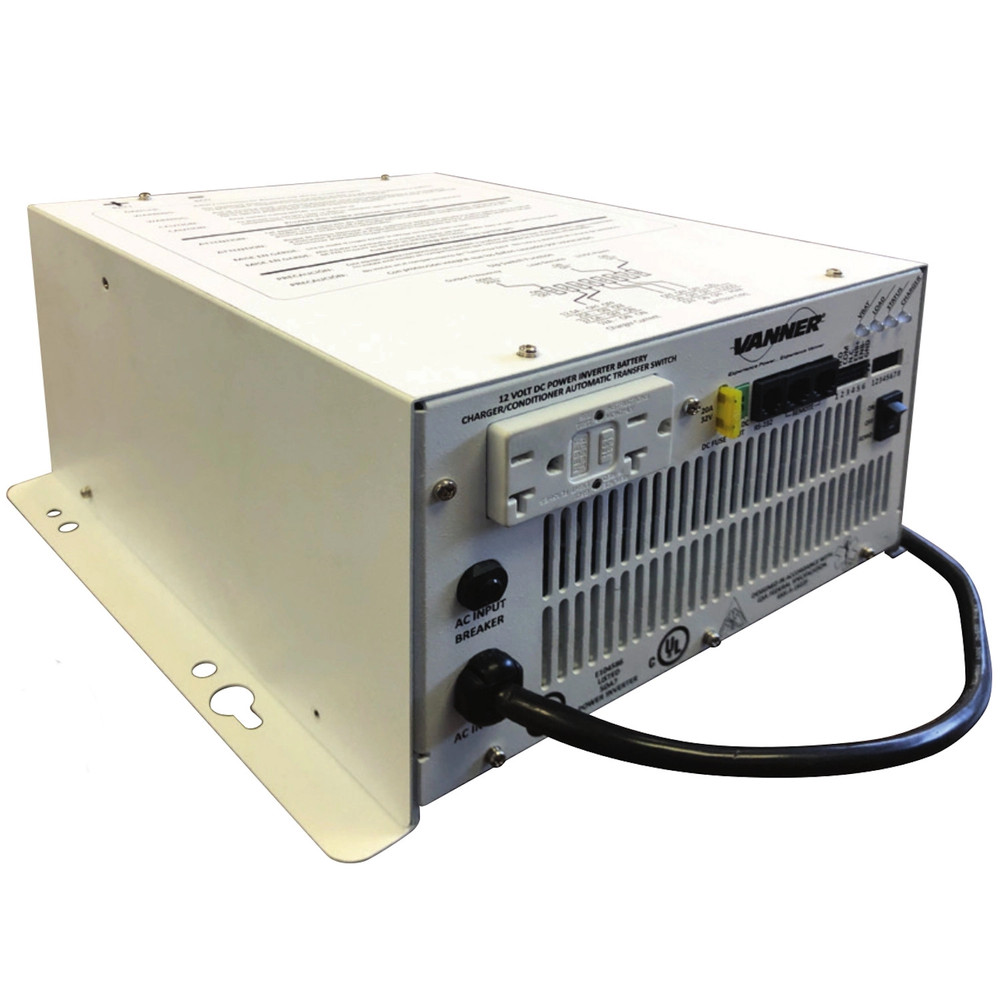

LSC12-1100 - Vanner LSC Series LifeSine Wave Ambulance Power Inverter With 12Vdc Input & 1100W AC Output
$1,521.00
Product Description
Features
- Converts 12VDC battery power to 1100 Watts of true sine wave 120V AC power to operate vital emergency vehicle equipment
- Includes inverter with built-in battery charger, transfer relay, and KKK Spec 12VDC Portable Equipment Charging Circuit with built in remote control capability
- Provides 1100W of continuous power and 3-second surge power up to 2200W
- Incorporates an energy-efficient three-stage, 55 amp battery charger and a 20 amp power supply
- Provides secure DC connection and eliminates DC connection pigtail with the "clean connect" DC receptacle
- Generates pure sine wave AC power to operate and protect the most sensitive electronic devices in the most extreme conditions
- DC input range of 10.5Vdc to 16.5Vdc offers the widest DC input range available and works with all OEM multi-voltage and multi-mode alternators
- Operating temperature range of -20C to +40C (-4F to +104F) for reliability in any climate
- Three seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
- All of these features, as well as Ignition Safety Interlocks comply with GSA, AMD, NFPA, and CAAS GVS, and are contained in one module for ease of installation.
- Easy to upgrade existing LifeStar and earlier Vanner quasi-sine inverters to the LifeSine Pure Sine wave
PRODUCT SPECIFICATIONS:
| Inverter | |
|---|---|
| Continuous Output Power Rating | 1100 Watts (9.2 amps) |
| Surge Capacity (3 sec): | 2200 Watts |
| DC Input Voltage, VDC : | 12 VDC Nominal, 10.5 VDC min,16.5 VDC max. |
| AC Output Voltage: | 120 VAC ± 5% |
| DC Current Draw from Battery | |
| Inverter OFF | 0.0 Amps |
| Inverter ON in Load Demand | Approx. 0.08 Amps |
| Inverter ON, Load Demand OFF, with No AC Load | Approx. 1.4 Amps |
| Inverter ON with AC Load | Approx. AC Load Watts ÷ 10 |
| Battery Charger | |
| AC Input Voltage | 120 VAC Nominal (90VAC min, 132VAC max) |
| AC Input Frequency | 60Hz or 50Hz, ± 3 Hz |
| AC Input Amps | 7.5 Amps AC Max (Approx. DC Output Amps ÷ 7) |
| Bypass Transfer Switch Rating, | -4F to 104F (-20C to 40C) |
| AC Output Current to GFCI Output Receptacle: | 12 Amps AC |
| Other Specifications | |
| Dimensions: | 11.57”W x 5.94”H x 11.4”D |
| Product Weight: | 9.5 lbs |
| Safety Standards: | Certified UL/cUL 458 |
| Gross weight: | 0 lbs |
