PKG-VSX-1800-BLZR-PM-EV-3 - Standard Package – 2024-2025 Chevrolet Blazer EV PPV VSX Console with Front Printer Mount Or Integrated Storage Bin for Tablet Docking Stations*
$2,017.00
Product Description
Features
- Convenient package solution offers the essential elements for any installation

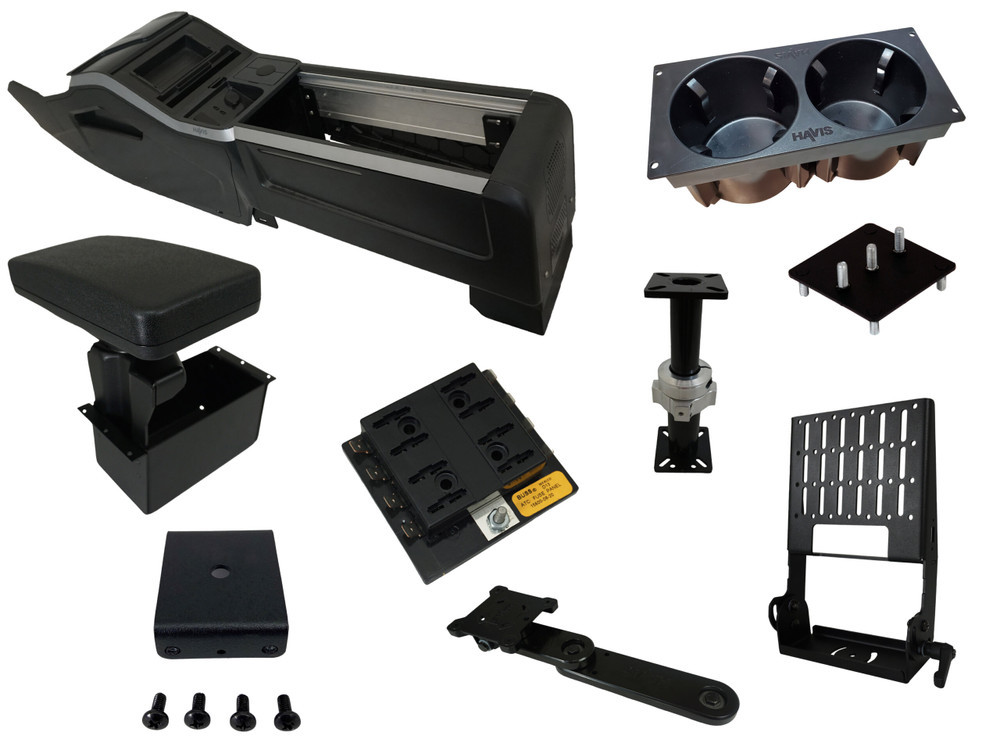

- Package includes Havis C-VSX-1800-BLZR-PM-EV console, CUP2-1004, CMX15600-08-1, C-ARM-113, C-HDM-218, C-HDM-301, C-UMM-103, C-ADP-121, and MD-ARM-0603
- Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
- Heavy-duty steel floor-mounting structure provides rigid framework for console
- Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
- 16% lower weight than comparable steel consoles
- Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
- Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
- If printer is not being used, leave pre-installed liner in place
- Removable tray in front storage bin can be replaced with optional C-EBX kits for siren light control head options (sold separately): See VSX console accessories
- Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-218, sold separately), relocated required OEM USB media hub, port for 12V lighter plug, and optional cutout for Havis C-USB-3 dual port
- 10" available internal mounting space, 18" total mounting space in 9"W section
- Storage pockets with provisions for dual USB & 12V outlet, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
- Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-604 hub, Motorola speaker, and integrated cable management system
- CUP2-1004 Self-adjusting double cup holder to fit cups up to 3.5" in diameter
- CMX15600-08-1 Fuse block kit holds 8 standard automotive blade type fuses up to 30 AMPS (fuses not included)
- Internal Mount flip-up armrest pad with accessory pocket providing more space to officers and their belt-mounted equipment
- Mount your monitor and keyboard to the Heavy-duty pole with height adjust handle, computer monitor, keyboard mount and motion device pre-assembled package for optimal viewing
- Storage pockets with provisions for dual USB & 12V outlet , removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
- Filler plates and equipment brackets for 9"W section included to enclose mounting areas
- Made in the USA with a lifetime warranty
- Vehicle trim levels with OEM console installed require additional purchase of Chevrolet duct, PN 26401329
- 2025 Blazer EV PPV model and later, OEM USB and OEM USB wiring F harness must be purchased separately
- GM USB part number: 527865004. GM wiring F harness part number: 86592838
- OEM USB block off plate included
Specifications
PRODUCT SPECIFICATIONS:
| Fits: | 2024-2025 Chevrolet Blazer EV, fits all SS retail trim levels and PPV version |
|---|---|
| Dimensions: | 53.16” L x 13.34” W x 16.25” H |
| Noncompatible: | C-EBX-MOT-1 |
| Optional bracket: | C-PMX-A-SP printer slot cover for non-printer use |
| Compatible printers: | Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits |
| Mounting: | Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting |
| Optional Cables: | DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately) |
| GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately) | |
| Gross weight: | 46 lbs |
